Upcoming Mid-America Electric Flies
AMA Sanctioned
Saturday, July 9 & Sunday, July 10, 2005
Hosted by the: Ann Arbor Falcons and Electric Flyers Only
Site Provided by the: Midwest R/C Society
Your Contest Directors are:
Ken Myers phone (810) 679-3238 or
KMyersEFO@aol.com -
Web site: members.aol.com/kmyersefo
Keith Shaw (734) 973-6309
Flying both days is at the Midwest R/C Society Flying Field - 5 Mile Rd., Northville Twp., MI
Registration: 9 A.M. both days
Flying from 10 A.M. - 5 P.M. (Sat.) & 10 A.M. - 3 P.M. (Sun.)
Narrowband Transmitters are required - Channels 00 through 60, the six 27Mhz frequencies, & eight 53MHz frequencies, will be in use. Flying on five 49 MHz frequencies may be accommodated on request - Narrowband receivers are recommended for flying on Channels 00 - 60 - Very Wideband 27, 49, & 53 MHz, receivers may be accommodated on request
Pilot Entry Fee $15 a day or $25 both days - - - - Parking Donation Requested from Spectators
Saturday's Events
All Up - Last Down
(No Li ion, Li-Po, etc.Ð NiCads or NiMH only in AULD Ð any size motor)
Pilots' Choice
Best Scale
Most Beautiful
Best Ducted Fan
Best Sport Plane
CD's Choice
Sunday's Events
Pilots' Choice
Best Scale
Most Beautiful
Best Mini-Electric
Best Multi-motor
CD's Choice
All Planes Must Fly To Be Considered for Any Award
Open Flying Possible on Friday
Night Flying Possible, Weather Permitting, Friday & Saturday Nights
Refreshments will be available at the field both days.
There will be a potluck picnic at the field on Saturday evening.
Come and join us for two days of fun and relaxed electric flying.
Even though this is called a contest, the purpose is fun and the enjoyment of sharing the electric experience.
Come, Look, Listen, Learn - Fly Electric - Fly the Future!
Saturday's & Sunday's Awards:
Plaques for 1st in each category
Merchandise drawing for ALL entrants
Return to "What's In This Issue?"
What Information Should Be In Plane Reviews?
From Jim Young tnjyoung@sbcglobal.net
Hi Ken,
Long time no see. Can you please add me to the Ampeer emailing list again? I've been away too long.
(Reminder to all who like to get the notice that the Ampeer has been posted, please let me know of any new email address, otherwise when the notice bounces back, I have no idea where to reach you. KM)
I had fun at the Skymasters' meeting; it was nice to see you, Jack, and Keith again.
You got me thinking about some of the reviews on the E-zone, and it is hard to get consistent reviews from all of the different authors. I can relay your input to the powers that be, and we can try to do a better job on the future. You mentioned the review quality in Fly R/C, what do they do that makes them so good? Any suggestions?
Thanks,
Jim Young
What Ken thinks makes for a GREAT review of an electrically powered aircraft:
All of the following data should be provided:
Type and Mission of the plane; i.e. RTF, ARF, kit, plans, park flyer, sport, sport scale, E-3D, trainer, etc.
Materials used to create the aircraft
Experience required to "create" the aircraft
Experience required to fly the aircraft
Type and size of recommended flying area
Surface required for ROG (if possible)
Weather (temperature & winds) on day(s) of test flight(s)
High and low speed flight characteristics as well as maneuvers the aircraft is capable of.
What was good about the aircraft and what needs improving.
All of the following should also include the manufacturer, specific supplier/distributor and links to manufacturer and supplier's Web sites.
Power System:
Motor: Mfg name and motor designation, weight w/wires and connectors, Kv, Rm, Io, timing and rotation (if applicable Ð see also ESC), shaft size
Gearing: (if applicable) Mfg name and designation, weight, ratio, material used for construction, special mounting notes, shaft size
Prop: Weight, size, power factor for use with Calc programs or spreadsheets
Prop/Spinner Mounting: Mfg Name and designation, weight, shaft size
ESC: Mfg Name and ESC designation, weight w/wires & connectors, resistance, max cells, max current, BEC notes regarding number of servos (if so equipped), programming notes (if applicable), cut off voltage (if applicable)
Power System Battery: Mfg name and battery designation, total battery weight w/wires & connectors, cell weight, cell capacity, max discharge rate, cell impedance/resistance
Full Throttle Measurements for:
RPM: with specified motor/battery/ESC/Prop
Watts in: with specified motor/battery/ESC/Prop
Amps in: with specified motor/battery/ESC/Prop
Volts in: with specified motor/battery/ESC/Prop
Connectors: Mfg name and designation, resistance per connection
Wire: Mfg or Supplier, gauge, total length, resistance, type and coating
Motor Mounting: how it was done and notes on commercial mount including weight (if used)
Radio System:
Transmitter: Mfg name, designation, number of channels used, special notes
Receiver: Mfg name and designation, number of channels, weight, shift, antenna, special notes
Servos: Mfg name(s) and designation(s), used for which functions, weight(s), torque, connector notes
Power for Onboard Radio System: battery - weight, number of cells, capacity or BEC/UBEC info.
Measured surface throws used on tested model
Airframe:
Wing Span, Fuselage Length, Wing Area, RTF weight (as tested), Finished Airframe Weight (that is weight without all of the power system and onboard radio components), Wing loading, Cubic Wing Loading, Watts in per pound, Typical Duration using the specified equipment, Approx. Stall Speed, Approx. Top Speed, Wheel Diameter (if applicable)
The reason that I feel that Fly RC is so good, is that in most of the reviews, they give most of the data I am looking for. Unfortunately, they are still having some editing issues and allowing things like the wrong wing loading and wrong input watts to make it into print.
I still subscribe to Quiet Flyer, but feel that the majority of there reviews fall short in providing the required information.
The reviews at the Ezone Magazine online (www.ezonemag.com) generally are lacking in the most basic aspects of usable data including prop, amp and rpm data. Steve Horney's recent "Hangar 9's Twist 40 ARF E-Conversion Review" is a shining exception!
I purchased the June 2005 issue of Model Airplane News because Mark Rittinger's BF-109 construction plan was featured in it. I'd not seen a MAN in quite a while and was very disappointed in the reviews. They have dropped their "Hits and Misses" section from the reviews. Dave Kemper's review of the Electrifly Super Sportster EP ARF was typical of the rest of the reviews. It was full of "mixed" signals and omissions. One thing that was omitted was the surface the plane was flown from. It has been my experience that the relatively small wheels with wheel pants are not suited to typical grass flying fields. I would have liked to have known how these faired in this application. The photos showed what appears to be "piano wire" landing gear but Dave said on p.40, "At first, I had concerns about this setup, but I found that the landing gear is not made of the typical flimsy aluminum used in other models, ..." I guess I'm out of the loop, as I had never heard of using aluminum wire on landing gear before. Mixed signals, p37 "The semisymmetrical airfoil aids in maintaining low-speed stability, and the low-wing design and full length ailerons facilitate crisp aerobatics, ..." p.40 "... while the ailerons, due to their smaller size, limit roll authority and make rolling maneuvers a bit slow." p.40 " wing loading of only 19.5 ounces per square foot." p.40 "... with its light wing loading, the plane seems to glide forever." Need I say more?
Return to "What's In This Issue?"
A Little 4-Star & Vacuum Pump
From Jim Halbert hal@interlinc.net
Thanks much for the file. (I told him about a Steve Neu article on the small KAN high discharge NiMH cells in the Quiet Flyer archive. KM) I subscribe to Quiet Flyer but never thought to check the archives. Duh.
There is too much game playing, in my humble opinion, by writers. I don't know if they really don't know or are messing with the troops.
Everything in Electric seems to be a big argument. One can make a good case that brushed motors are better than brushless. It has to be a given however the gear we talk about is top of the line. KISS
I made a lot of mistakes and wasted a lot of money following the advice of "experts" who must have been game playing before I figured the electric thing out. I have a real problem with bad info by "experts".

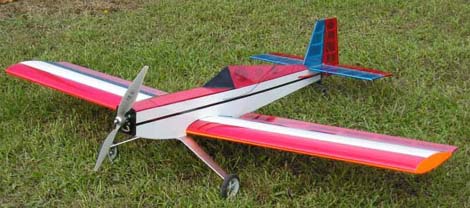

Attached is a picture of my scaled down Four Star 40. It's been re-engineered so much it doesn't have much in common any more. Even the airfoil was changed to a non -stall S8036/S8037. The wing is Obechi over foam, which is my favorite construction. Obechi is very hard to find but I found a good source.

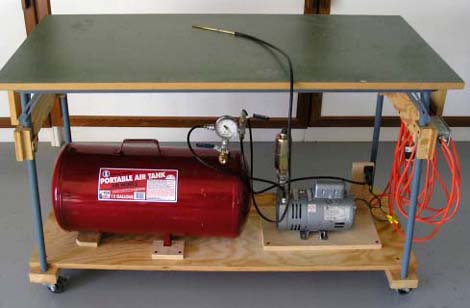

Jim's Vacuum Pump system for composite wing. About $150 in parts.
Do you have a DIY equipment file? I made a pro type vacuum pump system for composite wings. It's also used for work in my cabinet shop. It is a lot better then the CST system and a lot cheaper to build. If you are interested I could work up article on it.
Thanks,
Jim
Thank you Jim. We'll be looking forward to the article. Jim also included the following information. KM
Airplane Design Calculations
(From Aug, 04 issue of Quiet Flyer)
My new scratch built 3.5 Star E is used as an example. Some numbers are rounded off.
The 3.5 Star E is a 4 Star 40 reduced 20% at Kinko's . Note: reducing the print 20% results in reducing the wing area about 30%.
(To find the reduction in wing area, use the square root. Square root of 604 is 24.576411, square root of 432 is 20.78461, 20.78461 / 24.576411 = 0.8457138, therefore the plans were only reduced about 15.5% KM)
Basic specifications stock 4 Star 40 Glo Powered
Wing area= 604 sq. in.
Weight= 4.75 lbs. (76oz.)
Wing ]Loading= 18 oz/sq.ft
Cubic wing loading = 8.85 oz/cubic ft
Basic Specifications 3.5 Star E
Wing area = 432 sq in.
Weight = 2.4 lbs (38 oz) with battery
Wing Loading = 12.6 oz/sq ft.
Cubic Wing Loading = 7.4 oz/cubic ft.
Motor AXI 2820/12
Prop APC 12/6
Battery LiPo 2450
Wing Loading
Wing area in sq inches divided by 144 = Sq ft area
Divide weight in oz by sq ft.
Typical = 7-14Ó per Sq ft.
Example, (9) (48) = 432 sq. in. divided by 144 = 3 sq. ft.
38 oz divided by 3 sq ft = 12.6 oz per sq ft wing loading.
WL gives a very rough idea how a plane will fly but depends on the relative size of the airplane. High numbers require the plane to fly faster to stay airborne. This method is not recommended as a guide even though the magazines use it.
Stall speed
MPH = 4 x Square root of the wing loading
Example, Square Root of 12.6 for 3 Star E. (4) (3.54) = 14 MPH (rounded off).
Cubic Wing Loading
This number is better than WL to determine the airplanes flying qualities. The CWL number is independent of the size of the airplane big or little. A full size Cessna 154 has a CWL of 13 oz but a WL of 167 oz. A small model with a WL of 167 could not fly! But with a CWL between 7-20 would fly very well.
Typical CWL run from 5 for a sailplane to 30 for a pylon racer. The size of the airplane has no effect unlike WL. My 3.5 Star E at 7.4 oz/cubic ft should fly easier then a stock 4 Star at 8.85 oz/cubic ft.
(But handle less wind. KM)
To find the CWL, divide weight in oz. by wing area in sq ft raised to 1.5.
Example, wing area 432 sq in. divided by 144 = 3 sq. ft.
Cube the wing area in sq.ft. 3x3x3= 27. Then take the sq root. = 5.196. Divide the weight, 38 oz by 5.196 = 7.3 cubic wing loading.
(Note that Jim stated one formula and then used another to solve. Either will work. KM)
Go to members.cox.net/moorman1/apr.htm for more info and auto calculation.
Selecting Prop
Use the manufactures' recommendation for diameter and pitch. Then go to www.flydma.com select p-calc and try different size props to fit battery used and speed of airplane.
The use of a direct drive, high speed motor like the MegaÕs is not recommended for low or medium speed airplanes, i.e. a slow flyer vs a Zagi. My Zagi uses a Mega brushless direct drive with a 6x3 Glow prop. Very noisy and very fast. This combination would not work on my slow Yellow 400. So a 3.8 gearbox with an 11x6 prop is used here. An AXI out runner would also work very well here with a smaller prop.
Jim Halbert
Return to "What's In This Issue?"
A Follow-up on the HL Mini Telemaster
From Joe Morgan j_morgan@mindspring.com
I gave Joe some information about powering this plane in the April 2005 Ampeer. Here is his follow-up. KM
Ken,
After your help in finding some answers about an AXI motor and a Mini Telemaster model I thought I would pass along to you the results.
But first, do you know of a reasonably priced frequency meter that would indicate a frequency in use or perhaps interference? I almost lost the model I will describe late yesterday evening and I think it was interference. I say almost since I think I got lucky for once. I mentioned "reasonably priced" in connection with the frequency meter and felt I had to add that I don't "buy cheap and buy twice" as you quoted Keith Shaw to me before but at this stage of my life I do have to pay attention to where my money goes.
Sorry, I have no idea where to get a reasonably priced frequency meter. Here's what I'd do. First, I would get someone to help me do a very good range check, including with the motor on. If all goes well, before I flew, I would turn on the plane, without turning the transmitter on and carry it to various points of the flying field, always being mindful of the prop! If everything checks out, I'd probably fly it. I'd also hop in the car when the weather is nice and try and check out other possible "flying sites" within a mile or so of where I'm flying.
You didn't say what receiver you are using, but if the problem still exists, and you can't find interference, then you might want to try a different receiver, like the FMA Direct M-5.
This is the result of your guidance in selecting props, amperage etc for the Mini Telemaster - wingspan 45", area 315 sq in, weight complete w 2 Hi Tech HS 55 servos 11.2 oz. Airplane complete except for radio, motor and battery.
AXI 2212/20 with Aero-naut carbon fibre prop 8.5x5
Phoenix 25 ESC
Kokam HC1500 2s LiPo pack
With a freshly charged pack input is 59 watts at 8040 rpm
Obviously this is not a definitive group of figures but should tell you something. The model will break ground in 6-8 feet and climb at 45-50 deg till you get too high to follow it well. It will loop continuously from level flight, if that is what you want, and the acceleration is very rapid. The model is a pleasure to fly and very easy to land. That being said, I broke two props the first two times I flew it. I attribute that to the fact that I have only been flying slow sticks and similar the past 2-3 years and have grown used to not having to maintain much airspeed on landing. I have made 20-30 take offs and landings the past few evenings with no further prop breakage. This model is exactly what I was looking for. With the power setup I have, it will do probably everything the slow stick will do plus so much more. Even though it is light, it should be able to handle some wind without too much problem. I am really impressed with the power provided by the AXI and it is sooooo quiet.
I also have a Cutie with SR's power package but I am not impressed with the power pack, especially the noise from the motor/gear box, although I am proud of the airplane/kit. It is the first laser cut kit that I ever assembled and they really did a super job on the kit. I have been building and flying models since around the beginning of WWII. I would hope that we live to see in the future the manufacturers adopting a consistent and reasonable method of identifying their motors (electrics). I hope I haven't taken too much of your time but thanks again for your assistance.
Joe
Return to "What's In This Issue?"
Comments on the May Issue
From Bernard Cawley bernard.e.cawley@boeing.com
Ken,
Just skimmed the May Ampeer......and as is often the case I have some comments (I'll leave the quotes without comment uncommented).
First: That's a lovely Switchback! I'm sure James will have a ball with the airplane. If he's already flying the SmoothE with the same sort of power system he'll be surprised, I think, at how much "lighter" the SB will feel, and how much more it can be slowed down, as well as having a much softer stall. I would suggest a 10x7SF rather than the 11x4.7SF as both airplanes, but especially the SmoothE really like having more maneuvering speed margin. Static draw will be a bit higher, but I'll bet cruise flight will happen at lower throttle settings with that prop. As you know I fly the Switchback's first cousin, the Dandy Sport (the airplanes share the same wing) on the same Axi motor, and I also have flown my SmoothE that way very satisfactorily. The SmoothE, BTW, now has a Castle Creations Mamba 2054 in it on a Cobri gearbox at a bit over 8:1 turning that 10x7SF. Will be about 130W in on a plane right at 1 lb. Zoom!
BTW, the Castle Mambas are now (or will soon be) released for general airplane use. They're 20mm motors like so many others and come in even Kvs (3600, 4200, 5400, 6800 and 8000(!!)) but unlike the others they are cobalt rather than neo and so both run cooler and can tolerate more heat at the cost of slightly lower initial power compared to the similarly sized Himax 2015s, for example.
Which leads to..... Even numbered Kv values for these mass-marketed motors. I've never measured the Kv of a brushless motor (though I've been told you can do it exactly the same way as with brushed - put a voltmeter across two of the three phases and drive the motor at a known speed, then read the voltage). But I think those numbers are just marketing numbers or specification numbers given to the OEMs who actually make the motors. Why the heck so many different motor resellers want 20mm motors with a Kv of 4200 (for example) I don't know, but so it would seem. I would imagine measuring them would yield numbers that are close but not exact and would show some variation from sample to sample.
On Tom Hunt's results with Kokam 1500s...part of what's going on there is that while Kokam 1500s are claimed to be 8C cells, they're really out of breath at less than 5C (by that I mean under 3V per cell under a greater than about 5C load). Up until the latest generation Kokams (and with the exception of the 340s) I've been disappointed in the gap between claimed performance and actual performance. The new 15C and 20C cells, on the other hand, are amazing. Their voltage under load is outstanding (and, if anything, is a little better than your Motocalc examples using them) and they deliver about 90% of the rated capacity AT the rated load. The tradeoff is that they're heavier. For example, the Kokam 15C 910s are the same weight as Etec 1200s or Thunderpower 1300s, but under a reasonable load (say 9-10A) they show much higher voltage and delivered capacity.
Some of the NiMH cells have been similarly oversold - remember the much-hyped HECells? Those things were under 1V per cell at less than half their claimed discharge rate. So sure, maybe you could take current out of them at the claimed rate without them physically failing (at first, anyway) but was it efficient, or even useful? No.
Personally, I questioned the need/desire for 20C capable LiPoly cells simply because I LIKE being able to fly for 15-25 minutes at a time and 20C is 3 minutes. But I REALLY like the higher voltage under load and consistent capacity delivery from 1C to the rated discharge rate of these new Kokams. Time will tell how they hold up, but if I run these cells in applications that don't push the ratings (to get my 20 minute flights) I expect they'll last a long time. I have the most use (and not much of that, really, yet) on the 15C rated 2000s. I've also tested them with the CamLight setup I reviewed in the Ezone (http://www.rcgroups.com/links/index.php?id=4609) to verify the voltage and capacity under load. I've more recently received some 910s, 1250s and 3200s and am putting them into service as I can. In static motor testing they're holding voltage under load like the new 2000s do.
In any case, 2s packs of these cells can be used to replace 7 cell NiMH packs one would use in the same airplanes, and the 3s ones have more punch than 10 NiMH cells used that way.
I've also just learned the "don't discharge them too low" lesson personally. I recently received several of these Kokam packs and left one (3s 1250) hooked up to my Hyperion E-meter for about three days - just as an oversight, really. This meant that the battery was charging the little battery in the Emeter for that whole time. I went to do a test and the LVC kicked off immediately. A look at the meter said "6.0V"
- and this was a 3s pack! So, it was down to 2V per cell. I slow charged it (about 0.3C) and over three charge cycles of my 109 timing out in stage 2, put back in about 1260 mAh. But discharging it either with my CamLight discharger (at 7A) or the discharger in my 109 (about 1.2A) I am only getting about 815 mAh out of it now. A second identical pack I got at the same time is delivering over 1100 mAh. So, it only takes ONE deep discharge to really reduce capacity. I will cautiously continue to use it (though a 3s "800" pack that weighs 4 ounces is kinda heavy) to see what happens in the long term.
The Hyperion E-meter (www.aircraft-world.com/prod_datasheets/hp/emeter/emeter.htm), by the way, is a neat combination Whatt meter and tach that can store 5 snapshots of data with the press of two buttons and retain that data until you can write it down. It's also smaller and lighter than a Whattmeter. But the tach is very sensitive to artificial light (both fluorescent AND incandescent) which makes using the tach kind of a pain. But having volts, amps, watts and RPM captured at the same instant and stored makes it worth it to have to have a flashlight handy. More later as I use it more. A computer interface, ala Medusa Power Analyzer Plus, is coming. The E-meter also doubles as a programmer for the "Titan" series of brushless controllers. It's even easier than the Phoenix-Link.
Lessee.....Sombra. I now have three of them - two Shadow-1s and one Shadow-3. The Shadow-3 is currently in my Kadet EP-42 (which will be an Ezone review soon) and one of the -1s is in my Stevens Aero SquiRT (which did some beach plane duty a couple of weeks ago while we were on the Oregon coast for a week). The other -1 is going in my SmoothE before the meet this coming weekend. I love 'em so far. I've tested the first -1 on Airtronics (my REALLY old XL), Multiplex (Evo 9 synth, Cockpit and Pico), HiTec (Flash 4x) and GWS (Dreamstarter II negative shift version) transmitters - a mix of positive and negative shifts - and so far they're flawless. This coming weekend is the 15th annual Celebration of Silent flight and there they will get a chance to operate in a rather more crowded RF environment than they've seen before. But based on bench tests with an interfering transmitter on the SAME channel as the one locked into the Rx, I expect they'll be rock steady. I'm really anxious to get my hands on the upcoming Shadow-2 (a 4-channel smaller than a Berg microstamp).
The combination of Sombra Shadows and my Evo 9 synth Tx should make it possible to fly whenever I can get a flight station, even at the biggest of meets . I need to make up a blank frequency placard for my Tx antenna and bring a Vis-a-Vis pen along to show the channel I'm using at the time......
Gee, this got long didn't it? Take care.
| Return to "What's In This Issue?"

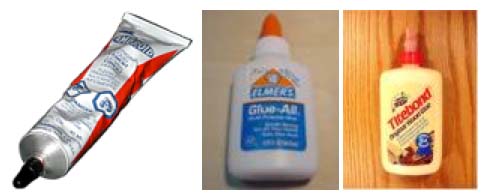

Thanks for a Great Meeting
From Greg Cardillo greg@skymasters.org
| |
