Mid-Am ‘98

Okay, so here is a blatant promo for the upcoming Mid-Am ‘99. Doug Ward wrote up this review of the ‘98 event for Watts Current, Sept. ‘98. I thought it might be a good time to share it with you all and invite all of you to attend the Mid-America Electric Flies, 1999. Km

Here is this re-viewer’s view of the superb Mid-America Flies meet which took place over the July 11-12 weekend (1998 Km). The weather was mostly perfect unless you were into slow flyers such as Phil Smith’s masterpiece of lightness shown in the picture.
Phil offered me the following data on his electric-powered indoor/outdoor radio controlled model: Flying weight-10 oz.; Flying speed-seven mph; Wing Area-seven square feet; Wing loading - 1.4 oz per square foot. The picture of the model in the air was taken early Sunday morning in a very light breeze which the designer described as the practical limit for his model’s ability to handle moving air. Quite an achievement!

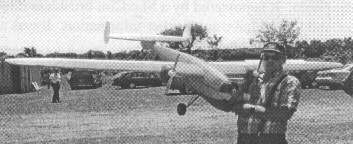

The photo is of a new twist on an old-time classic, the Custom Cavalier, which was kitted in a single-engine version by Berkeley in the 1930s. It was an awesome package which modelers seemed to crave, but I only saw one or two actually fly. This model belongs to Bob Livin and he powers it with two geared Astro 15s, sport wind, each turning a 13x8 prop and running on 20 cells. It has a nine-foot wingspan and ready-to-fly weighs nine pounds 12 oz. The wing possesses 1016 square inches of floativity. Additionally, Bob has equipped it with working ailerons, something not found on the original model. This is a beautiful piece of model work.
Pictured is Les Garber whose expertise as a modeler is known far and wide. He is holding an auto-gyro, one of his recent forays into the difficult. To launch this thing you gotta run fast across the field to get the rotor to spin rapidly enough to become a wing. It has no power of its own and remains spinning only so long as the model moves through the air. That’s right, it all comes from the motor in the front driving a conventional propeller. He ran, he threw and it flew superbly. Les has never failed to catch my interest after having seen him last year at this same meet with a Bleriot which also demonstrated his skill as a modeler/flyer.

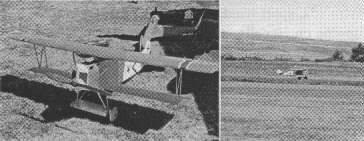

If you were at the Toledo show this year, you probably caught a glimpse of Dave Grife’s Fokker D7 which he built from a Proctor kit. It contains 36 cells-Sanyo 2000s-which drive an Astro 60 w/Superbox and weighs in at 24 lbs. The 24x16 prop turns at 4000 rpm and consumes juice at the rate of 40 amps. The controller is an Astro 204. All this provides Dave with a four-minute flight time, more or less, depending upon throttle usage.
What a sight to behold in the air or on the ground! Whatever paint he used to finish the model gave it a brilliant red and white against the bright blue Michigan sky. The picture on the right shows the warrior coming in for a landing.

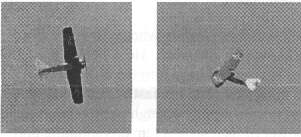

I was lucky enough to get an air shot of Keith Shaw’s Fokker D8, but for some unknown reason I haven’t got anything to show for a picture of it on the ground. The two airborne photos will give some sense of what this fine model looks like in flight. It, too, had a spectacular color scheme of olive drab, red and white and really sparkled in the afternoon sky.
The All Up Last Down event attracted a lot of glider guiders who launched simultaneously but did not come back that way. The three finalists were Ken Bates (1st), John McCullough (2nd) and a flier with-the first name of Helmut (3rd).
Since I was timing and observing for John, I cannot say exactly how long he stayed aloft but it seemed like nearly a week.
As for the winner pictured here, he pushed his sailplane up so high it was less than a quarter inch in wingspan and he just stayed there, taunting the others to come up and join him if you could see that well. I understand that Ken carried about four hours battery capacity, but, then, that could just have been a rumor with the intent to demoralize. It was all over in a little less than two hours.
The meet this year attracted a record 80 registered pilots and the numbers of spectators also seemed to be on the rise. Prize drawings took place on both days and Saturday evening offered a cook-out for all the hungry pilots and family members who stayed on for the feast.
The site for this contest can be reached in five hours from Irwin via the Pennsylvania and Ohio Turnpikes. When you get near Toledo, turn right and go straight north. You’ll be O.K. There is always room for more, so try to put this meet on your flight plan for next year (this year Km).

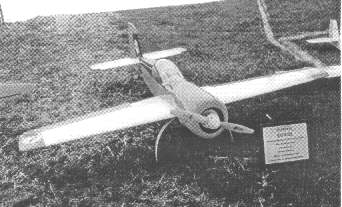

Finally, here are a couple of additional pictures from the meet. The airplane is an electric Sukhoi built, I believe by Jack Sowle whose name I had to read from the photo. It is powered by a MaxCim brushless motor and I don’t have any further information. It was a very impressive airplane.
To Keith and Ken, we all owe a round of applause. I know I’ll be there next year. How about you? (How about joining us this year? Km)

Return to "What's In This Issue?"

Use of Mobil Telephones in Proximity to Electronically Programmed Transmitters
From: Warren Plohr eamail: hwplohr1@worldnet.att.net

For those of you who don’t know Warren, he’s long been involved with the AMA frequencies and is very knowledgeable in this area.

Source: Journal of British Model Flying Association, www.BMFA.org

Following our notice in the 9th October, 1998 Club Bulletin concerning the use of mobile telephone in proximity to electronically programmed transmitters, we have had several requests for clarification and further information.
The JRCUC has reported that there may be a problem associated with operating mobile telephones in the close proximity of programmable transmitters causing the memories to be partly or fully erased. This problem has yet to be scientifically substantiated; however, it is generally known that RF radiation can disable or permanently damage some modern electronic devices.
Although the risk may be small, we believe it should be minimised by bringing it to the attention of members and clubs. Pending resolution, we recommend that mobile telephones are not operated in either receive or transmit mode within 10 feet of nay programmable transmitter. This may appear to be overkill, but better safe than sorry! Care should be taken during pre-flight checks to ensure that all controls are operating fully and in their correct sense to ensure that the memory has not been affected by any unknown transmissions since the last flight.
Some programmable transmitters use a lithium battery to maintain the memory when the transmitter is switched off. Should the memory back up battery fail, the memory can be erased but this would be usually accompanied by an audio and/or visual warning. The memory cannot fail whilst the transmitter is switched on as it is then powered by the nicad batteries. In the unlikely even of having problems with your programmable memory, refer to your equipment supplier or handbook for advice.

Return to "What's In This Issue?"

HIGH WINGS versus LOW WINGS
by Clay Ramskill - Loops and Lies, March 1999 - Rich Ida: editor

We finally master our high wing trainer, or trash it, whichever comes first. Maybe then we build a shoulder wing plane.
Only after we are somewhat competent at flying do we try flying a low wing plane, and then with white knuckles and shaky knees. WHY? Just what is it about low wingers that make them "tougher" to fly?
Are they faster? No! All other things being equal, there’s virtually no difference in drag, or therefore top speed. The illusion comes from designers’ choice. They tend to put faster airfoil sections and lower aspect ratios on low wing planes, making them speedier. Low wing planes do have several character-istics, compared to high wingers that make them more suitable for higher performance aircraft.

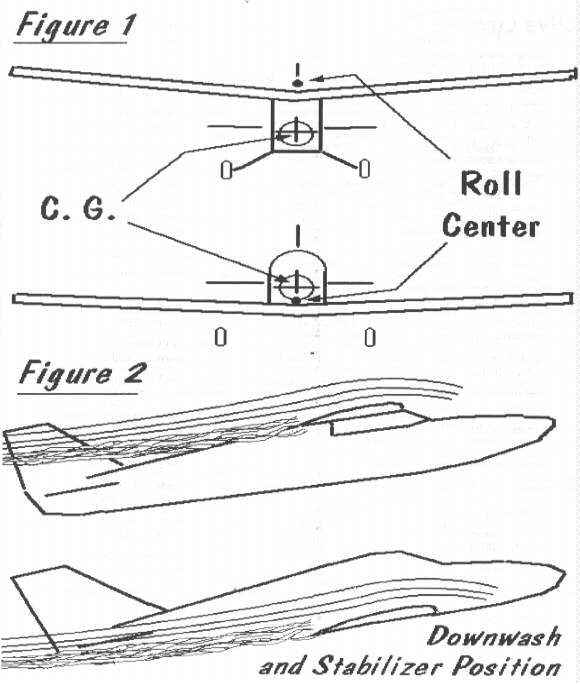

  1. "Nicer" (and quicker) roll response. This comes from the relative placement of the Center of Gravity, being closer to the natural roll center of the wing. The CG will be at, or only slightly above, the roll center of a low wing, but well below that of a high wing. Assuming at least a little dihedral, the roll center of the wing will be slightly above the center of the wing. See figure 1.
    During a roll, the wing (providing the “power”) wants to roll about its own roll center. The rest of the plane (the "resistance") wants to roll about the CG. The wider the distance between roll center and CG, the funnier looking is the roll (i.e. "non-axial")
  2. The low wing lends itself to a less stable stabilizer position, leading to more pitch maneuverability.

With a high wing, it’s simple, and natural, to have the stabilizer well below the wing. When the nose is pulled up, the stab drops down well below the wing’s downwash, and becomes increasingly resistant to further AOA increases. This is great for stability, and makes stalls less likely.
The opposite is true for the low winger. On a pull-up, the higher stab drops into the wing’s downwash, making further AOA increases easier, and the plane more maneuverable. The low wing reacts more neutrally to power changes.
Our old high wing trainer, with the thrust line very low, will respond by pitching nose up when power is added, nose down if power is reduced. This contributes to stability, with the nose going the way we want it to one a trainer. On the other hand, the low winger will be more neutrally stable, without much pitch reaction to power changes.
The low winger will also be more wind "resistant" on the ground, a function of wing height above the wheels. The high winger will naturally be more "tipsy," reacting to wind while taxiing and during takeoff and landing. Understand that I'm only talking of tendencies here. There are many other variables that have an impact on the characteristics involved. The designer care juggle these around to get the desired handling, but wing placement is definitely one of the biggies when it comes to establishing how a plane is going no handle.

Return to "What's In This Issue?"

Anxiety Eliminator or Throttle Setup Tester
by Rich Simpson - Watts Current - February 1999, edited by James Troxell

This is a simple tester I made with junk and or Radio Shack parts to aid in setup of any new or modified electric plane.

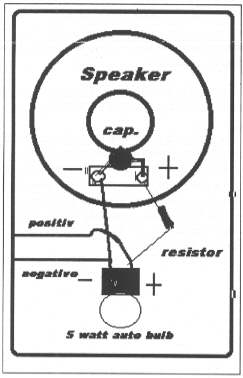

You plug this box into your electronic throttle instead of the motor when setting up a new plane. The bulb will glow dim to bright IF the throttle (TX) is going the correct way. And the speaker will be silent if the control is off and buzz faster until at full on it will then again be silent. I haven’t tested an old frame rate 50 Hz control as I have none and 50 Hz may be below the response of these little speakers. The more common 2-5000 Hz should work well with any small speaker, over 8k Hz may require a special speaker.
